ホーム /製品/ジェリーはブロー形成機械をできる/20L 25L Plastic Lubricant Oil Bottle Drum Blow Molding Machine Featuring Chinese and English Operation Panel 4.4 3.4 3.6

20L 25L Plastic Lubricant Oil Bottle Drum Blow Molding Machine Featuring Chinese and English Operation Panel 4.4 3.4 3.6

$55,800/sets 1-2 sets
価格
20L 25L Plastic Lubricant Oil Bottle Drum Blow Molding Machine Featuring Chinese and English Operation Panel 4.4 3.4 3.6
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
ビデオ送信検査: 提供された
機械試験報告書: 提供された
コアコンポーネント: PLC,エンジン,ベアリング,ギアボックス,ギア
プラスチック加工: PP、HDPE、ABS、PVC、PE、EVA、PE/PP、HDPE/PP
原産地: 江蘇省、中国
brand name: DAWSON
電圧: 440V/415V/380V/220V
寸法(長さ*幅*高さ): 4.4*3.4*3.6
クランプ力（kn）: 270
ネジ径（mm）: 90 mm
生産量 (kg/h): 130kg/時
オートメーション: 自動
スクリュー加熱ゾーン数: 4
スクリュー加熱力(kW): 10 kW
押出機モーター出力(kW): 30Kw
模具 プレートのサイズ (幅) (mm): 660mm
模具 プレート サイズ (高さ) (ミリ): 680 mm
空気圧（MPA）: 0.8MPa
空気消費量(m³/分): 2.2m3/分
ダイヘッド加熱電力(kW): 8 kW
電力(kw): 67
重量(T): 11.3
主なセールスポイント: 操作が簡単
保証: 1年
ブロー成形タイプ: 放出のブロー形成機械
最大適用サイズ: 30L
冷却水圧: 0.6 MPa
水の消費量: 100 L/min
型の寿命: > 1,000,000の周期
カビ材料: P20, 2316, S136H, アルミとベリリウム銅
言語設定: 中国および英国操作のパネル
提供される指示: 中国語および英語の指示
労働需要: 1~2 operetor
サンプル提供: 必要であれば
状態: 新しい
コアコンポーネントの保証: 1年
アプリケーション: ボトル、ジェリ缶、瓶、ガロン
該当する業界: 製造工場、食糧及び飲料の工場、農場、食糧及び飲料の店
ショールームの場所: フィリピン
年: 新しい
空の部分の容積: 30L
アキュムレータ容量(L): 0L
基本情報
お支払配送条件
パッケージの詳細: ブロー成形機にはプラスチックフィルムが詰められています。補機とスペアパーツは木箱に詰められています。コンテナへの積み込みは、重量バランスに合わせて行われ、各パッケージはコンテナ内で移動しないように位置
製品の説明
20L 25L Plastic Lubricant Oil Bottle Drum Blow Molding Machine Featuring Chinese and English Operation Panel 4.4 3.4 3.6 0


Products Description

DAWSON MACHINERY & MOULD GROUP

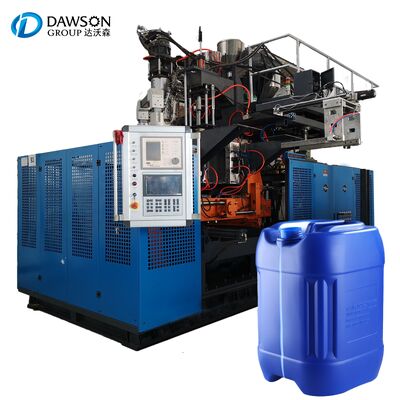

Extrusion Blow Molding Machine ABLB90-30

20L Jerry cam blow moulding machine suitable for making plastic bottle, jars, containers, jerrycans up to 30L,
The whole blow molding machine is equipped with bilingual operation panel and automatic configuration from world famous brands to realize the advantages of simple operation and high automation.

20L 25L Plastic Lubricant Oil Bottle Drum Blow Molding Machine Featuring Chinese and English Operation Panel 4.4 3.4 3.6 1
20L 25L Plastic Lubricant Oil Bottle Drum Blow Molding Machine Featuring Chinese and English Operation Panel 4.4 3.4 3.6 2
Machine Model
Max. Bottle size
Production forecast
ABLB90-30
Single Station Single Head
30L
45~60 BPH
Technical Parameters
Name
Units
ABLB90-30L
Max.product volume
L
30L
Screw diameter
MM
90
Screw drive power
KW
10
Output of HDPE
KG/H
130
Oil pump drive power
KW
11
Clamping force
KN
270
Max.size of mold
MM
680× 660
Template size
MM
290×320
Mold stroke
MM
450-950
Size of machine
L×W×H
4.4×3.4×3.6
Weight of machine
TON
11.3
Photos Reference
20L 25L Plastic Lubricant Oil Bottle Drum Blow Molding Machine Featuring Chinese and English Operation Panel 4.4 3.4 3.6 3
20L 25L Plastic Lubricant Oil Bottle Drum Blow Molding Machine Featuring Chinese and English Operation Panel 4.4 3.4 3.6 4
20L 25L Plastic Lubricant Oil Bottle Drum Blow Molding Machine Featuring Chinese and English Operation Panel 4.4 3.4 3.6 5
20L 25L Plastic Lubricant Oil Bottle Drum Blow Molding Machine Featuring Chinese and English Operation Panel 4.4 3.4 3.6 6
20L 25L Plastic Lubricant Oil Bottle Drum Blow Molding Machine Featuring Chinese and English Operation Panel 4.4 3.4 3.6 7
Click here to send us messages >> Send Inquiry...

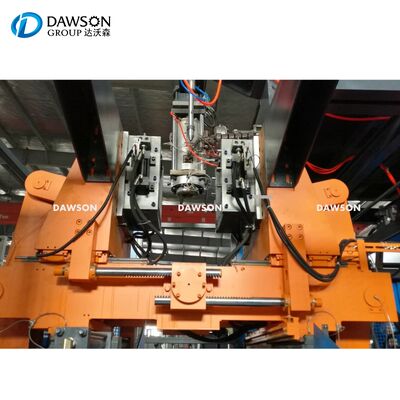

Clamping System
20L 25L Plastic Lubricant Oil Bottle Drum Blow Molding Machine Featuring Chinese and English Operation Panel 4.4 3.4 3.6 8
Workshop
Our professional blow molding machine workshop...
20L 25L Plastic Lubricant Oil Bottle Drum Blow Molding Machine Featuring Chinese and English Operation Panel 4.4 3.4 3.6 9
High Quality Blow Molding mould

In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.
We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.

- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material- Necking plate use JAPAN DC53 Heat treatment to HRC62
- Double neck design available to change in future as a spare part necking
- All mould can be made auto-deflashing or manual deflashing as per customer requests
- Perfect mould cooling design to ensure the best moulding preformace
- Available to provide 2D & 3D product drawing for customers
- Available to send samples to customer for approval the product quality
- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU,

HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...
20L 25L Plastic Lubricant Oil Bottle Drum Blow Molding Machine Featuring Chinese and English Operation Panel 4.4 3.4 3.6 10
20L 25L Plastic Lubricant Oil Bottle Drum Blow Molding Machine Featuring Chinese and English Operation Panel 4.4 3.4 3.6 11
Company Profile
DAWSON MACHINERY & MOULD GROUP

Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India,
Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia,
Venezuela, Peru....

We have our own service team in
Saudi Arabia, Colombia, Panama, South Africa ...

20L 25L Plastic Lubricant Oil Bottle Drum Blow Molding Machine Featuring Chinese and English Operation Panel 4.4 3.4 3.6 12
DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 20 years' experience in the field of plastic machinery,
blow molding machine, injection molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery,
plastic packaging machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique competitive advantage of our owns.

The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 65 countries, we provide complete solution for your plastic industry business,
as well as all sorts of technical support & after-sale services!

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
20L 25L Plastic Lubricant Oil Bottle Drum Blow Molding Machine Featuring Chinese and English Operation Panel 4.4 3.4 3.6 13
20L 25L Plastic Lubricant Oil Bottle Drum Blow Molding Machine Featuring Chinese and English Operation Panel 4.4 3.4 3.6 14
20L 25L Plastic Lubricant Oil Bottle Drum Blow Molding Machine Featuring Chinese and English Operation Panel 4.4 3.4 3.6 15
FAQ
Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle
will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
